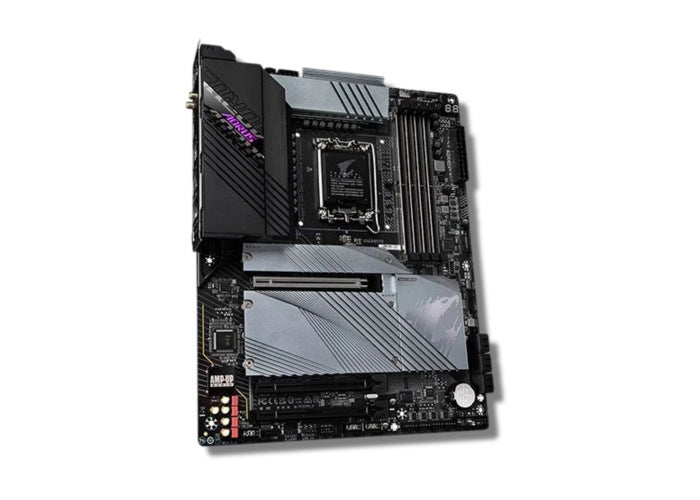

Motherboard - GIGABYTE Z690 AORUS PRO

Motherboard GIGABYTE Motherboard Z690 AORUS PRO s1700 Z690 4xDDR4 M.2 DP Wi-Fi!!!BT Type-C 2.5GbE LAN SPDIF ATX (Z690_AORUS_PRO)

Technical Specifications:

🔹 Chipset: Intel Z690 – Ideal for Intel 12th and 13th Gen Alder Lake processors, offering high-performance capabilities.
🔹 Socket: LGA 1700 – Compatible with Intel 12th and 13th Gen processors (Alder Lake and Raptor Lake).
🔹 RAM:

• 4x DDR4 slots – Speeds up to 5333 MHz (may vary on some models).
• Maximum memory capacity: 128 GB.
  🔹 Storage:
• 4x M.2 PCIe Gen 4.0 x4 – For high-speed SSDs, ensuring fast and efficient operation of the operating system and applications.
• 6x SATA 6Gb/s ports – For additional storage devices.
  🔹 Video Output:
• DisplayPort 1.4 – 4K+ image support.
• HDMI 2.1 – 4K resolution, at a higher frequency.
  🔹 Wi-Fi 6: Latest Wi-Fi 6 technology, providing high speed and stable connection.
  🔹 Bluetooth 5.2: Bluetooth 5.2 – Next-generation connectivity between devices.
  🔹 USB Ports:
• 1x USB 3.2 Gen 2x2 Type-C – Ultra-high-speed data transfer.
• 4x USB 3.2 Gen 2
• 2x USB 3.2 Gen 1
• Several USB 2.0 ports.
  🔹 Network:
• 2.5 GbE Ethernet – High-speed internet connection.
  🔹 Expansion Slots:
• 1x PCIe 5.0 x16 – Full support for graphics cards and other powerful devices.
• 1x PCIe 4.0 x16 (in x4 mode).
  🔹 Audio: Realtek ALC1220-VB – Audio output for professionals, supporting high-quality audio.
  🔹 SPDIF: Digital audio output.
  🔹 Type-C: USB Type-C port for fast data transfer.
  🔹 Form Factor: ATX – Large form factor, allowing for the addition of graphics cards, processors, and other components.

GIGABYTE Z690 AORUS PRO – This board is designed for high-performance computers that require high-speed storage, fast internet connectivity, and powerful graphics capabilities. Ideal for gaming, professional work, and multimedia processing. 🎮🎥💻
