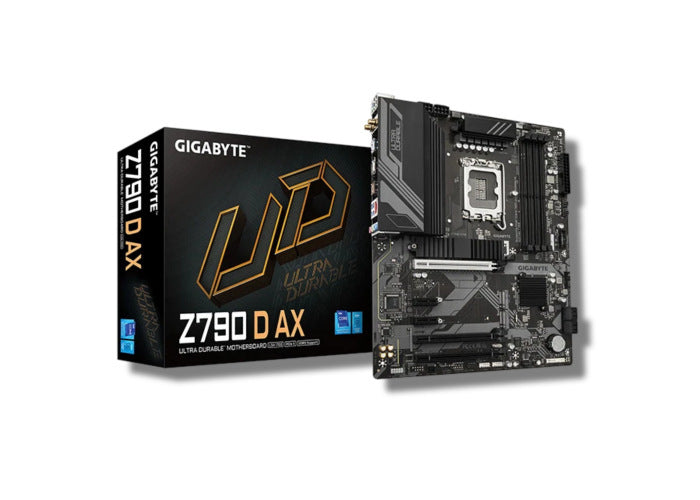

Motherboard - Gigabyte Z790 D AX

Motherboard Gigabyte Z790 D AX, Socket LGA1700, 4 × DDR5, ATX

Specifications:

🔹 Model – Z790 D AX
🔹 Form Factor – ATX
🔹 Socket – LGA 1700
🔹 Chipset – Intel Z790
🔹 Compatible Processors – Intel Core 12th, 13th, and 14th Gen, Pentium Gold, Celeron
🔹 RAM – 4 × DDR5 DIMM, max 256 GB, up to 7600 MHz (OC)
🔹 Expansion Slots – 1 × PCIe 5.0 ×16 and 2 × PCIe 3.0 ×1
🔹 Storage – 3 × M.2 (PCIe 4.0 / 3.0 NVMe) and 4 × SATA 6 Gb/s
🔹 Wireless Connectivity – Wi-Fi and Bluetooth (antenna included)
🔹 Network – 2.5 Gb Ethernet
🔹 Internal Connectors – 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1, 5 × USB 2.0, 2 × RGB and 2 × ARGB connectors, Q-Flash Plus button
🔹 Rear Panel Ports – HDMI, DisplayPort, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2x2 Type-C, 2 × USB 3.2 Gen 1, 4 × USB 2.0, RJ-45 Ethernet, and 3 audio outputs
🔹 Operating System – Windows 11 and Windows 10 (64-bit)
🔹 Dimensions – 30.5 × 24.4 cm

✅ The Gigabyte Z790 D AX is an ATX motherboard with support for PCIe 5.0, DDR5, three M.2 slots, and a Wi-Fi module — suitable for gaming and workstation systems.
