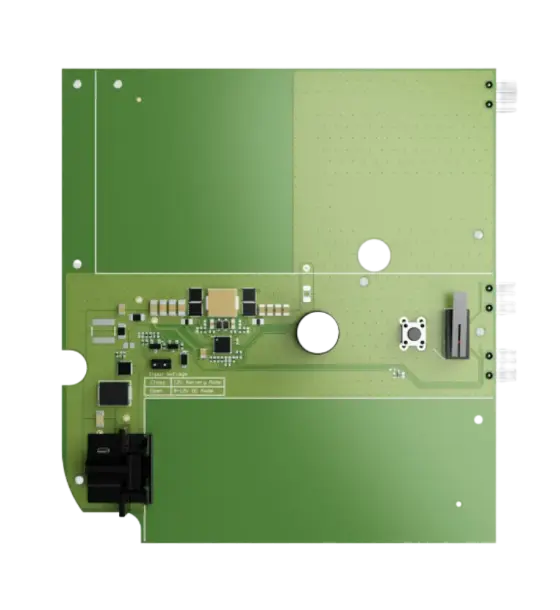

Ajax 12V PSU (NVR) — Power Supply Unit

Ajax 12V PSU (NVR) — low-voltage power supply unit. Original Ajax — with official warranty.

Technical Specifications

• Product Type: Low-voltage power supply unit
• Device Type: Wired
• Purpose: Allows Ajax NVR to operate on 12 V DC instead of standard 110/230 V power
• Compatibility: Ajax NVR
• Input Voltage: 8–16 V DC (without jumper); 12.1–16 V DC (with jumper)
• Output Voltage: 12 V DC ±3%
• Turn-on Voltage: 8 V (without jumper); 12.1 V (with jumper)
• Turn-off Voltage: 6.5 V (without jumper); 10.35 V (with jumper)
• Maximum Output Current: 2 A
• No-load Current Consumption: 65 mA
• Off-state Current Consumption: 110 µA
• Connector Type: Power jack 5.5 × 2.1 mm (male); Socket 6.5 × 2.0 mm (female)
• Operating Temperature: 0°C to +40°C
• Humidity Resistance: Up to 75%

Order Ajax 12V PSU (NVR) — delivery throughout Georgia.
