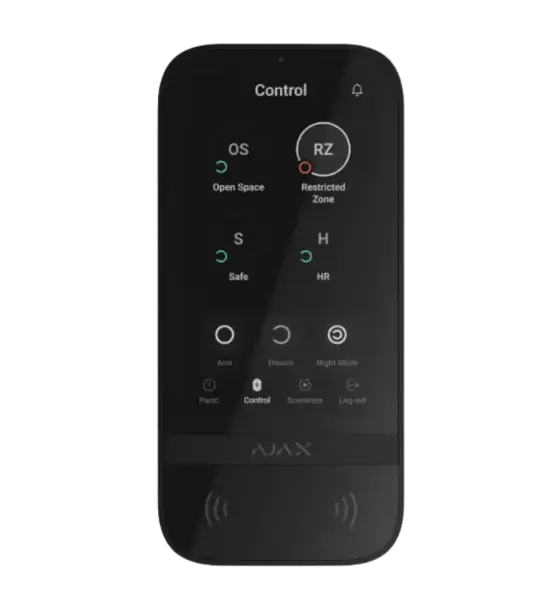

Ajax KeyPad Touchscreen Jeweller — Keypad

Ajax KeyPad Touchscreen Jeweller — Wireless indoor touchscreen keypad with a 5-inch IPS touch display. Reliable protection for home and business.

Technical Specifications

• Product Type: Wireless indoor touchscreen keypad with a 5-inch IPS touch display
• Installation Method: Indoor, wall-mounted using SmartBracket
• Compatibility: Compatible with Ajax Hub 2, Hub 2 Plus, Hub Hybrid, and ReX 2 range extenders; requires OS Malevich 2.16.1 or later
• Communication Protocols: Jeweller (for alarm and event transmission), Wings (for firmware updates and additional data)
• Maximum Communication Range: Up to 1,700 meters in open space
• Power Supply: 6 × AA batteries (pre-installed); additional external power supply (10.5–14 V DC, ≥0.5 A)
• Battery Life: Up to 1.5 years on batteries; external power recommended for Always Active Display and firmware updates
• Display: 5″ IPS touch screen (480 × 854 px), capacitive sensor, automatic and manual brightness control
• Operating Temperature Range: -10°C to +40°C
• Humidity: Up to 75%
• Protection Class: IP50
• Dimensions: 172 × 82 × 26 mm
• Weight: 327 g
• Color Options: White or Black

Order Ajax KeyPad Touchscreen Jeweller — delivery across Georgia.
