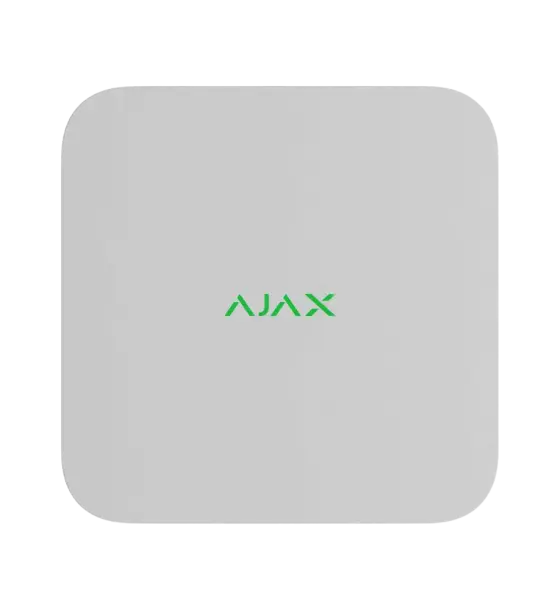

Ajax NVR 16 CH — NVR Recorder

Ajax NVR, 16 channel

Ajax NVR 16 is a network video recorder that fully integrates with the Ajax ecosystem and is controlled from the Ajax application.

Technical specifications:

🔹 Video channels – up to 16 IP cameras
🔹 Maximum resolution – 4K (25/30 fps)
🔹 Video codecs – H.265, H.264
🔹 Bandwidth – up to 100 Mbps
🔹 Storage – 3.5" SATA drive up to 16TB (drive not included)
🔹 Power – 110-240V, 50/60Hz; power consumption up to 24W
🔹 Backup power – CR2032 battery for system clock
🔹 Connectivity – Ethernet (up to 100 Mbps); Bluetooth LE for setup
🔹 Motion detection – NVR or camera algorithms
🔹 Video management – video wall in the app, event filters, and timeline navigation
🔹 Integration – ONVIF (Profile S, partially Profile T); compatible with third-party VMS systems
🔹 Access management – distribution of user rights in the app and PRO Desktop
🔹 Protection – anti-dismantling (tamper) alarm
🔹 Operating conditions – 0°C to +40°C; humidity up to 75%
