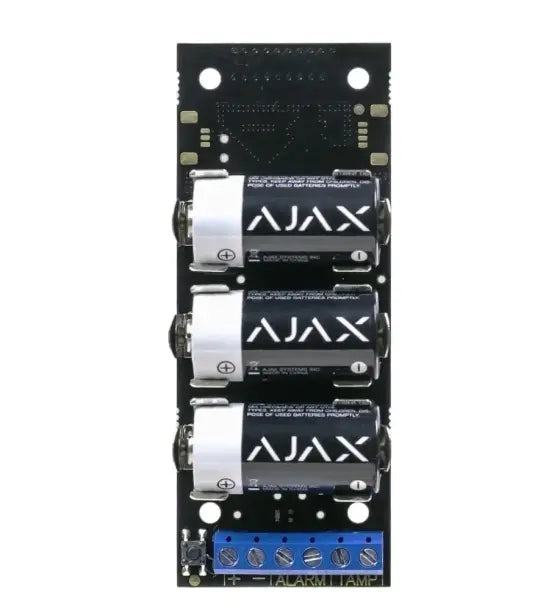

Ajax Transmitter Jeweller — Accessory

Ajax Transmitter Jeweller — a wireless module that allows the integration of third-party wired detectors into the Ajax security system. Original Ajax — with an official warranty.

Technical Specifications

• Product Type: Wireless module that allows the integration of third-party wired detectors into the Ajax security system
• Compatibility: Compatible with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus, and Hub Hybrid
• Communication Protocol: Jeweller (two-way encrypted communication)
• Maximum Communication Range: Up to 1,600 meters in open space
• Power Supply: 3 × CR123A batteries (3 V); provides 3.3 V power output for connected detectors
• Battery Life: Up to 5 years (depending on usage and power consumption of the connected device)
• Tamper Protection: Yes; detects removal or displacement of the device via a built-in accelerometer
• Operating Temperature Range: −25°C to +50°C
• Humidity: Up to 75%
• Dimensions: 100 × 39 × 22 mm
• Weight: Approximately 74 g
• Installation Method: Installed inside the casing of a third-party wired detector
• Maximum Cable Length to Detector: Up to 150 meters (using 24 AWG twisted pair cable)
• Certification: EN 50131 Grade 2 compliant

Order Ajax Transmitter Jeweller — delivery throughout Georgia.
