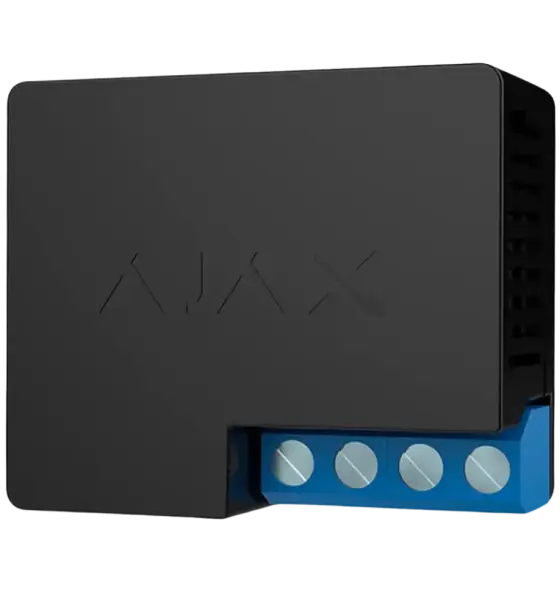

Ajax WallSwitch Jeweller — Smart relay

Ajax WallSwitch Jeweller — wireless power relay for remote control and energy consumption monitoring of 110–230 V AC devices.

Technical Specifications

• Product Type: Wireless power relay for remote control
• Compatibility: All Ajax hubs and radio signal range extenders
• Connection Protocol: Jeweller — two-way encrypted radio protocol
• Communication Range: Up to 1,000 meters in open space
• Power Supply: 110–230 V AC, 50/60 Hz
• Maximum Load: Up to 3 kW (active load)
• Maximum Current: 13 A
• Operating Modes: Pulse and bistable (firmware 5.54.1.0 or newer)
• Pulse Duration: Adjustable, from 1 to 255 seconds
• Relay Contact State: Normally open or normally closed (configurable)
• Control: Ajax application, automation scenarios, button on the casing
• Energy Monitoring: Measures current, voltage, power, and consumed energy
• Protections: Voltage (184–253 V AC for 230 V network), current (13 A), and temperature (above +65 °C)
• Operating Temperature: 0 °C to +64 °C
