Turnstile - Atlas BFC 154 – 4 Arms Colored Half Height Turnstile

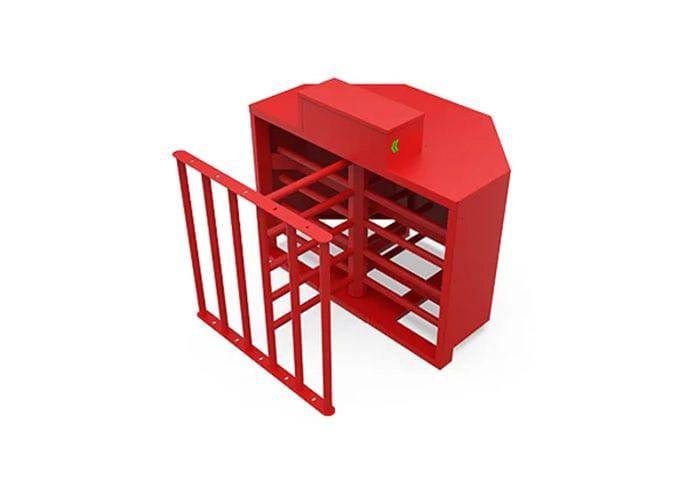

Atlas BFC 154 half-height turnstile, four-arm, painted

Technical specifications:

🔹 Model – Atlas BFC 154
🔹 Type – Half-height four-arm turnstile
🔹 Body – 1.5 mm steel top block, side panels and tubes; supports made of 10 mm steel
🔹 Operation – Bi-directional, mechanical rotation
🔹 Functions – Passage signal (A-B and B-A, 5 V DC), adjustable passage time, memory mode, audible warning and direction selection
🔹 Fire mode – Arms are released when connected to a fire alarm system
🔹 Power supply – 100–230 V AC, 47–60 Hz
🔹 Power consumption – 3.7 W during passage; 4 W in standby mode
🔹 Throughput – Up to 20 people per minute
🔹 Passageway width – 55 cm
🔹 Indication – LED display in both directions
🔹 Operating temperature – From -10°C to +70°C (with heater up to -30°C)
🔹 Weight – Approximately 105 kg
🔹 Security level – High

✅ The Atlas BFC 154 with a painted body is an economical alternative to the stainless steel model — suitable for factory and warehouse entrances.
