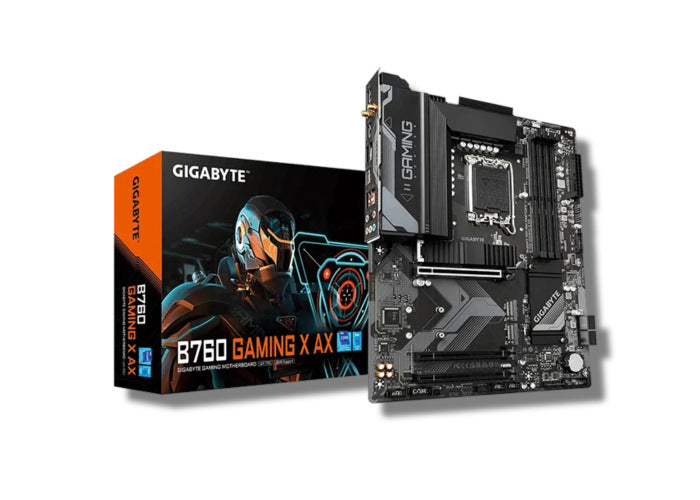

Motherboard - Gigabyte B760 GAMING X AX 4DDR5 LGA1700

Gigabyte B760 Gaming X AX Motherboard, Socket LGA1700, 4 × DDR5, ATX

Technical Specifications:

🔹 Model – B760 Gaming X AX
🔹 Form Factor – ATX
🔹 Socket – LGA 1700
🔹 Chipset – Intel B760
🔹 Compatible Processors – Intel Core 12th, 13th, and 14th Gen, Pentium Gold, Celeron
🔹 RAM – 4 × DDR5 DIMM, up to 256 GB, up to 7600 MHz
🔹 Expansion Slots – 1 × PCIe 4.0 ×16 and 2 × PCIe 3.0 ×1
🔹 Storage – 3 × M.2 (PCIe 4.0, NVMe) and 4 × SATA 6 Gb/s
🔹 Wireless Connectivity – Wi-Fi 6E and Bluetooth
🔹 Internal Connectors – 1 × USB 3.2 Gen 2 Type-C, 1 × USB 3.2 Gen 1 Type-A, 5 × USB 2.0, 2 × RGB and 2 × ARGB connectors, Q-Flash Plus button
🔹 Rear Panel Ports – USB 3.2 Gen 2 Type-A, USB Type-C (3.2 Gen 1), HDMI, DisplayPort, RJ-45 Ethernet, and 6 audio outputs
🔹 Operating System – Windows 11 and Windows 10 (64-bit)
🔹 Dimensions – 30.5 × 24.4 cm

The Gigabyte B760 Gaming X AX is an ATX motherboard with support for DDR5 memory, PCIe 4.0, and three M.2 slots — suitable for gaming and workstation systems.
