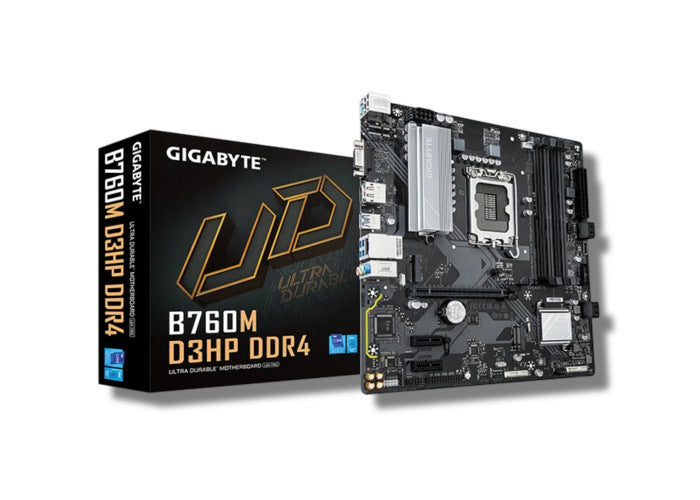

Motherboard - Gigabyte B760M D3HP DDR4 4DDR4 LGA1700

Motherboard Gigabyte B760M D3HP DDR4 4DDR4 LGA1700

Specifications:

🔹 Motherboard Model – B760M D3HP DDR4
🔹 Form Factor – Micro ATX
🔹 Socket – LGA 1700
🔹 Chipset – Intel B760
🔹 Compatible Processors – Intel 14th, 13th, and 12th Gen Core™, Pentium® Gold, Celeron®
🔹 RAM Memory – DDR4, Max. 128GB, 5333 MHz
🔹 Memory Slots – 4 x DIMM
🔹 PCIe Slots – 1 x PCI Express x16 (PCIe 4.0, x16 mode), 2 x PCI Express x1 (PCIe 3.0, x1 mode)
🔹 PCI Express Version – PCIe 4.0, PCIe 3.0
🔹 Internal I/O Ports – 2 x M.2 (PCIe 4.0, NVMe SSD support), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x RGB LED header, 1 x ARGB header, 1 x Q-Flash Plus button
🔹 Rear Panel Ports – 3 x USB 3.2 Gen , 2 x USB 2.0/1.1, 1 x HDMI, 1 x DisplayPort, 1 x D-Sub, 1 x RJ-45 LAN, 3 x Audio Jack, 1 x PS/2 (keyboard/mouse)
🔹 Operating System – Windows 11/10 64-bit support
🔹 Dimensions – 24.4 x 24.4 cm

✅Gigabyte B760M D3HP DDR4 Micro ATX motherboard, ideal for DDR4 systems, features PCIe 4.0 support, versatile connectivity, and enhanced expandability.
