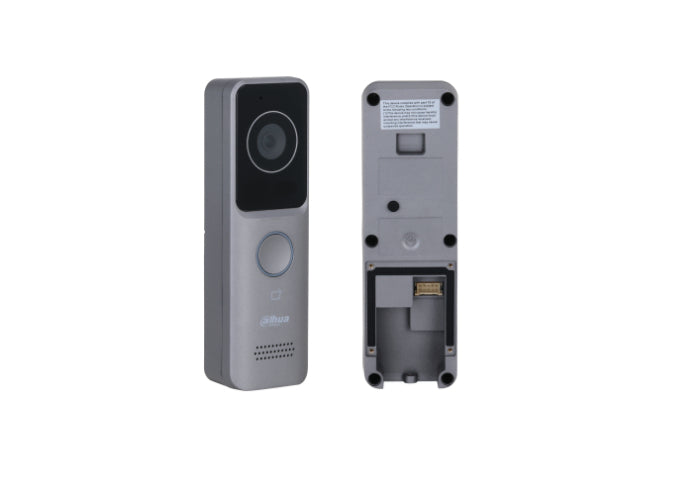

Dahua VTO2311R-WP IP Video Door Station 2MP

Dahua VTO2311R-WP Outdoor Video Intercom Panel

Your home's door is the first line of security. The Dahua VTO2311R-WP IP video panel allows you to see visitors and speak to them from your smartphone, no matter where you are. Wi-Fi connectivity, IC card access, and IP65 protection — all in one compact device.

Key Features:

• 2MP, 1/2.8" CMOS Camera (1920 × 1080) — clear image in day and night conditions; WDR 120dB for strong backlight compensation
• Wi-Fi 2.4 GHz and RJ-45 Network — flexible installation: wired or wireless, with PoE support
• Two-Way Audio (Full-Duplex) — built-in microphone and speaker with echo cancellation; clear sound even in noisy environments
• IC Card Access — up to 3000 cards; also via mobile app or indoor monitor
• IP65 Protection and -40°C to +60°C Operating Temperature — metal, vandal-resistant casing

Technical Specifications:

🔹 Camera – 1/2.8" CMOS, 2MP (1920 × 1080)
🔹 Angle of View – 110° (horizontal), 62° (vertical), 133° (diagonal)
🔹 WDR – 120 dB
🔹 Video Codecs – H.264, H.265
🔹 Frame Rate – 25 fps (PAL), 30 fps (NTSC)
🔹 Day/Night Mode – Automatic (ICR), Color / Black & White
🔹 Audio Codecs – G.711a, G.711u, PCM
🔹 Wi-Fi – 802.11b/g/n, 2.4 GHz
🔹 Network – 1 × RJ-45 (10/100 Mbps)
🔹 Protocols – ONVIF, SIP, RTSP, P2P, HTTP/HTTPS
🔹 Access Methods – IC Card, Mobile App, Indoor Monitor
🔹 Card Capacity – 3000
🔹 Storage – MicroSD card up to 256GB
🔹 Power Supply – 12-33V DC or PoE
🔹 Power Consumption – up to 3.5W (standby), up to 6W (operating)
🔹 Protection Class – IP65
🔹 Operating Temperature – -40°C to +60°C
🔹 Dimensions – 160 × 50 × 30 mm
🔹 Weight – 0.18 kg
🔹 Certifications – CE, FCC
🔹 Accessories – Alarm cable, Rain shield
